Insulating Materials Plastic Testing Equipment AC 220V 50HZ Tracking Erosion Tester

Brand Name : DAXIAN

Model Number : DX8427

Certification : ASTM D2303, IEC60587-2007

Place of Origin : China

MOQ : One set

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 5 sets per month

Delivery Time : 5-8 work days

Packaging Details : Wooden case

Usage : Silicone rubber Corrosion resistance testing machine

Standards : IEC60587-2007, ASTM D2303

Power : AC 220V/50HZ

Test time : 6h

Test Voltage : 100~6000V Adjustable

Warranty : 12 Months

Contact Now

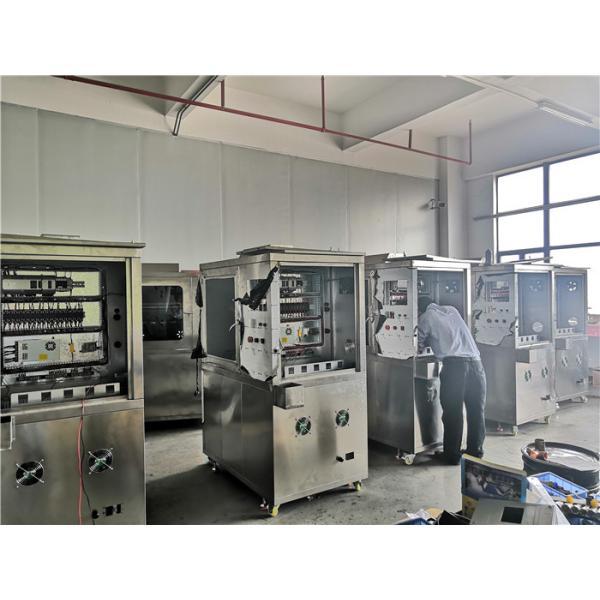

IEC60587 Testing Equipment Insulating Materials Liquid-Contaminant, Inclined-Plane Tracking And Erosion Test Machine

Model: DX8427

Scope:
These test methods cover the evaluation of the relative tracking and erosion resistance of insulating solids using the liquid-contaminant, inclined-plane test.2 The following test methods also can be used to evaluate the tracking resistance of materials: D2132 (contaminants: dust and fog) and D3638 (contaminant: conductive liquid drops).

Standard:


IEC60587-2007, ASTMD2303.



Parameters:

Name DX8427 High Voltage Tracking Index Tester

Box

≥ 0.5 cubic meters

Drop size

44 to 50 drops / cm3

Power supply

AC 220V, 50Hz

Drip height

30mm ~ 40mm adjustable

Electrode Pressure

1.00N±0.05N

Performance Index:

Testing Voltage power 6000W
Instrument Dimensions 1500L*1050W*2000H (mm)
Operationg Room Size 1100L*900W*950H (mm)
Electrode thickness: 0.5mm; material: stainless steel
Gape of Electrade 50.0mm±0.1
Liquid Flow Range 0.0016-1.5ml/min optional setting
Testing time 0-10 hours, setting freely



1. Testing Voltage: AC: 0V-6000V no rate adjustable;
DC: 0V-8400V no rate adjustable;

2. Dropping liquid Precision: 0.5%;
3. Stop droping liquid and turn off the Voltage Output if the loop current is more than 60mA;
